OptiMate 1 Voltmatic: 4-step, automatic charger & maintainer Lead-acid, 6V / 12V , 0.6A

The OptiMate 1 VoltMatic (model: TM-401) is a compact automatic battery charger and long-term maintainer for smaller 6V and 12V lead-acid batteries used in motorcycles, ATVs, UTVs, personal watercraft, snowmobiles, vintage vehicles, medical equipment, security systems and other battery-powered equipment.

VoltMatic smart control automatically recognizes whether the connected battery is 6V or 12V and selects the correct charging program—no manual voltage selection required. Simply connect the charger to the battery, and OptiMate 1 automatically charges, optimizes and maintains it without supervision.

The 0.6A charging current is ideal for smaller STD flooded, AGM and GEL batteries. It can provide 24-7 maintenance for batteries from 2Ah to 28Ah and recharge batteries up to 15Ah within 24 hours.

With a low-voltage start of 4V, energy-efficient operation and proven “connect and forget” maintenance, the OptiMate 1 VoltMatic keeps seasonal and infrequently used batteries fully charged, healthy and ready when needed.

VoltMatic: Smart microprocessor control automatically identifies the connected battery as 6V or 12V and applies the correct charging voltage.

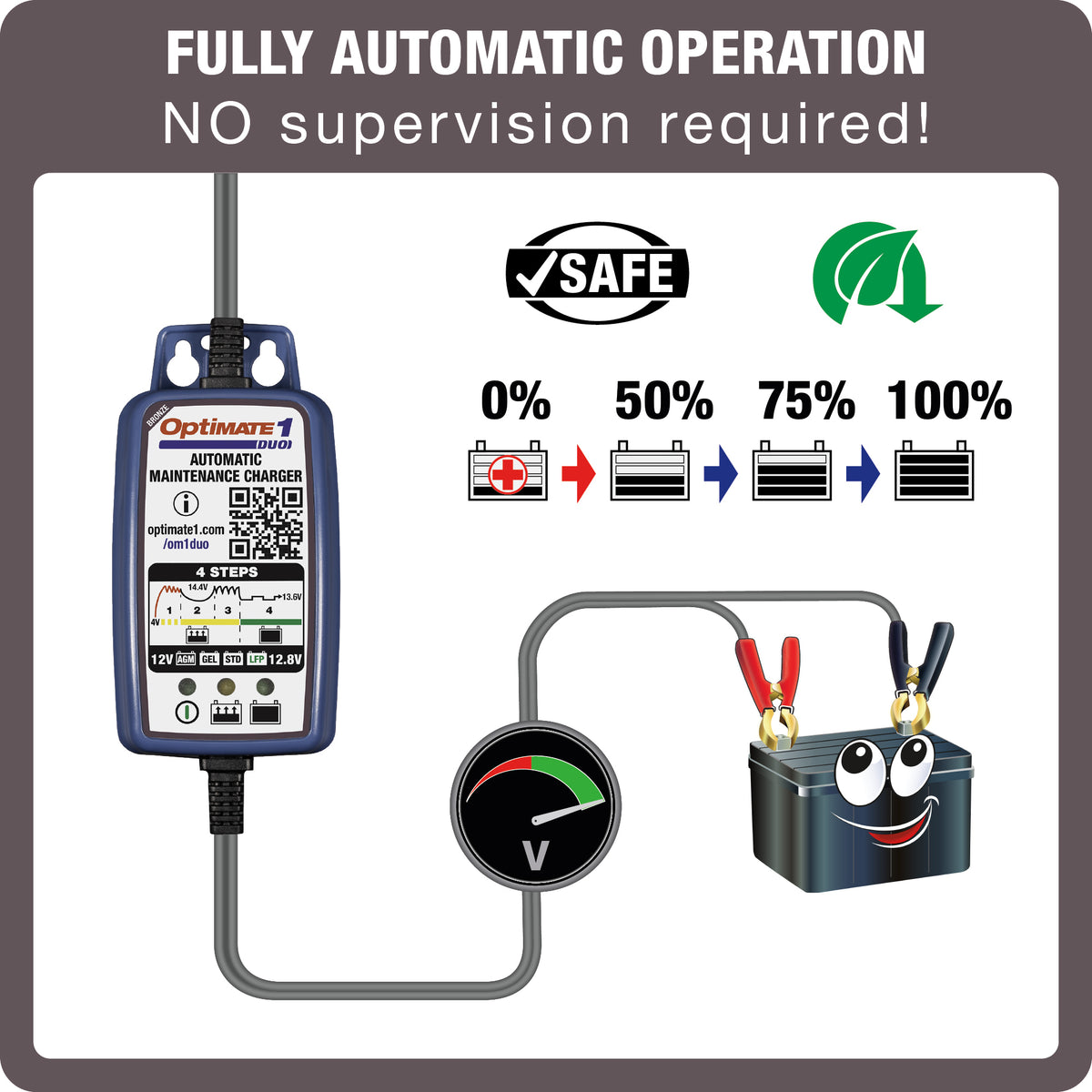

AUTOMATIC: Connect the charger to a compatible STD, AGM or GEL lead-acid battery, and the 4-step charging and maintenance program does the rest automatically.

LOW-VOLT START: Begins charging batteries with voltage as low as 4V.

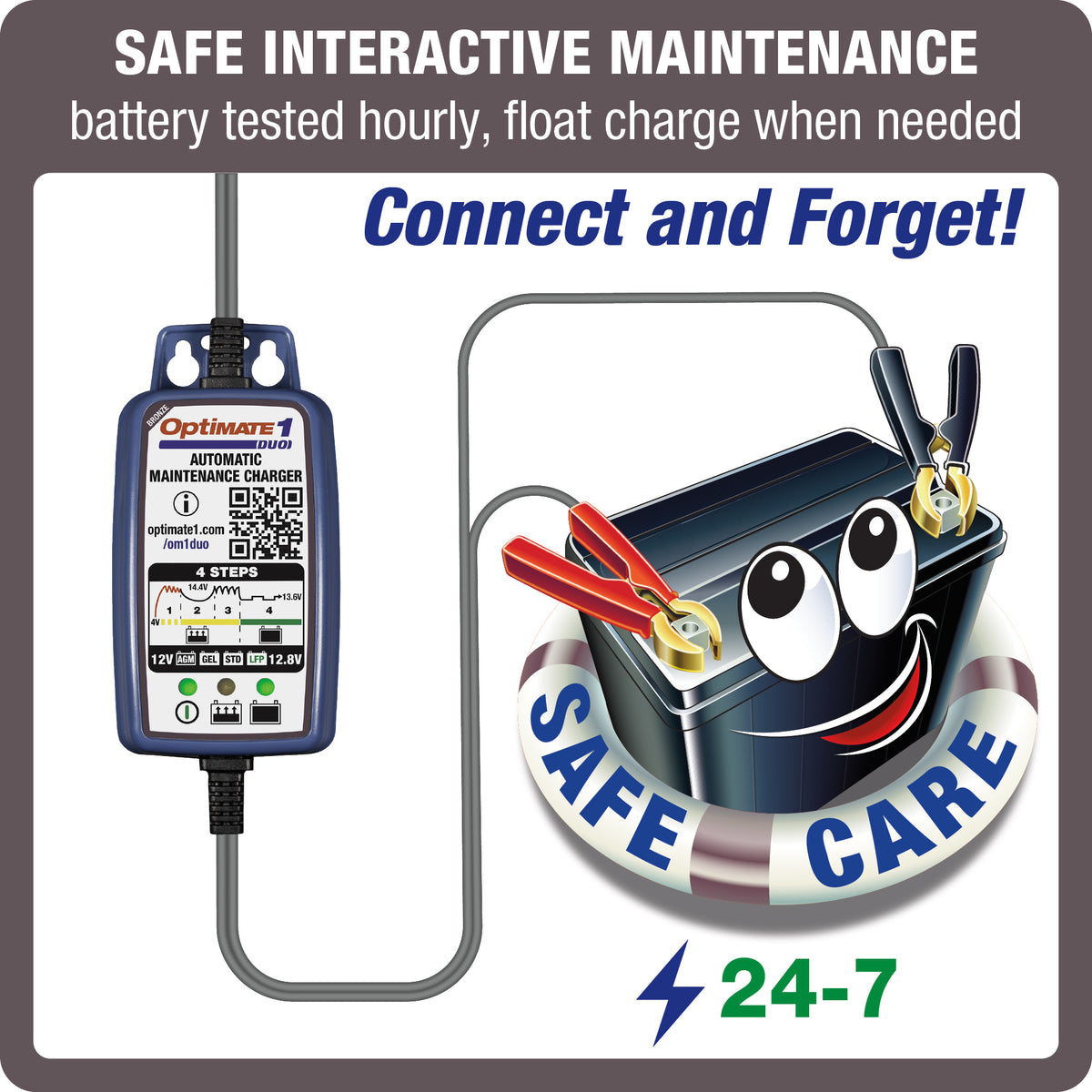

24-7 MAINTENANCE: Safely maintains the battery at full charge for extended storage without overcharging.

SAFE: Fully protected against accidental reverse polarity, short circuits and disconnected batteries. Spark-suppressed operation makes it safe for sensitive vehicle electronics.

ENERGY-SAVING TECHNOLOGY: High-efficiency charging and maintenance with standby power consumption below 0.5W.

More Features:

• Charge current – Delivers 0.6A constant-current charging.

• Automatic 6V/12V selection – VoltMatic automatically recognizes the connected battery voltage; no manual selection is required.

• Lead-acid battery compatibility – Works with 6V and 12V STD flooded/wet-cell, AGM and GEL sealed lead-acid batteries.

• Recommended battery sizes – Provides 24-7 maintenance for batteries from 2Ah to 28Ah and can recharge batteries up to 15Ah within 24 hours.

• Starter and deep-cycle applications – Suitable for compatible small engine-starting and deep-cycle lead-acid batteries.

• 4-step smart program – Automatically charges, optimizes and maintains the connected battery.

• Global input – Accepts 100–240V AC, 50–60Hz power with a Type-A plug for the United States and Canada.

• Long charging lead – Features a 12-foot/370cm charging cable ending in a standard SAE connector.

• Safe for sensitive electronics – No risk of overcharging, with spark suppression, short-circuit protection and automatic shutoff if the battery is disconnected.

• Cold-weather operation – Rated for use in temperatures as low as –20°C/–4°F.

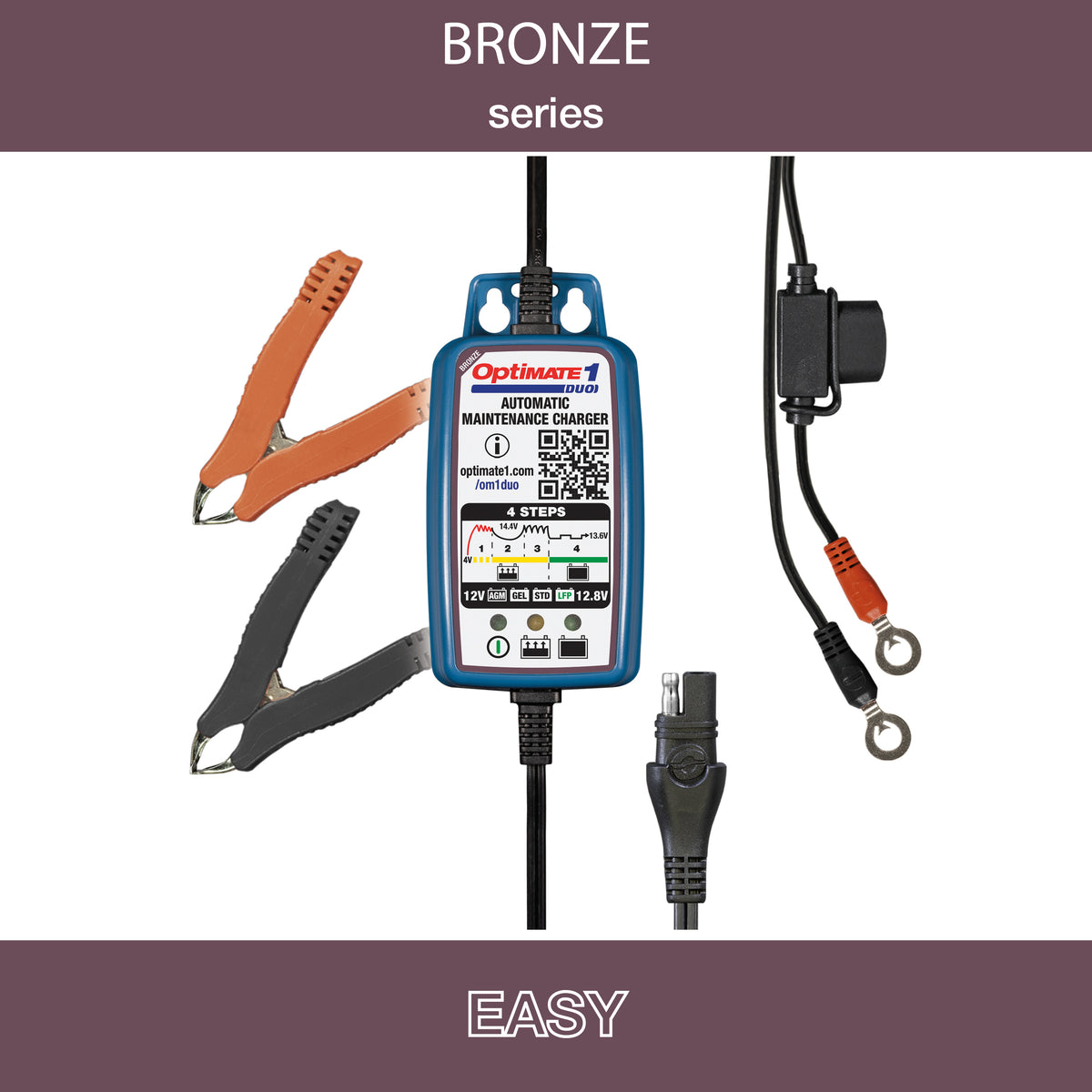

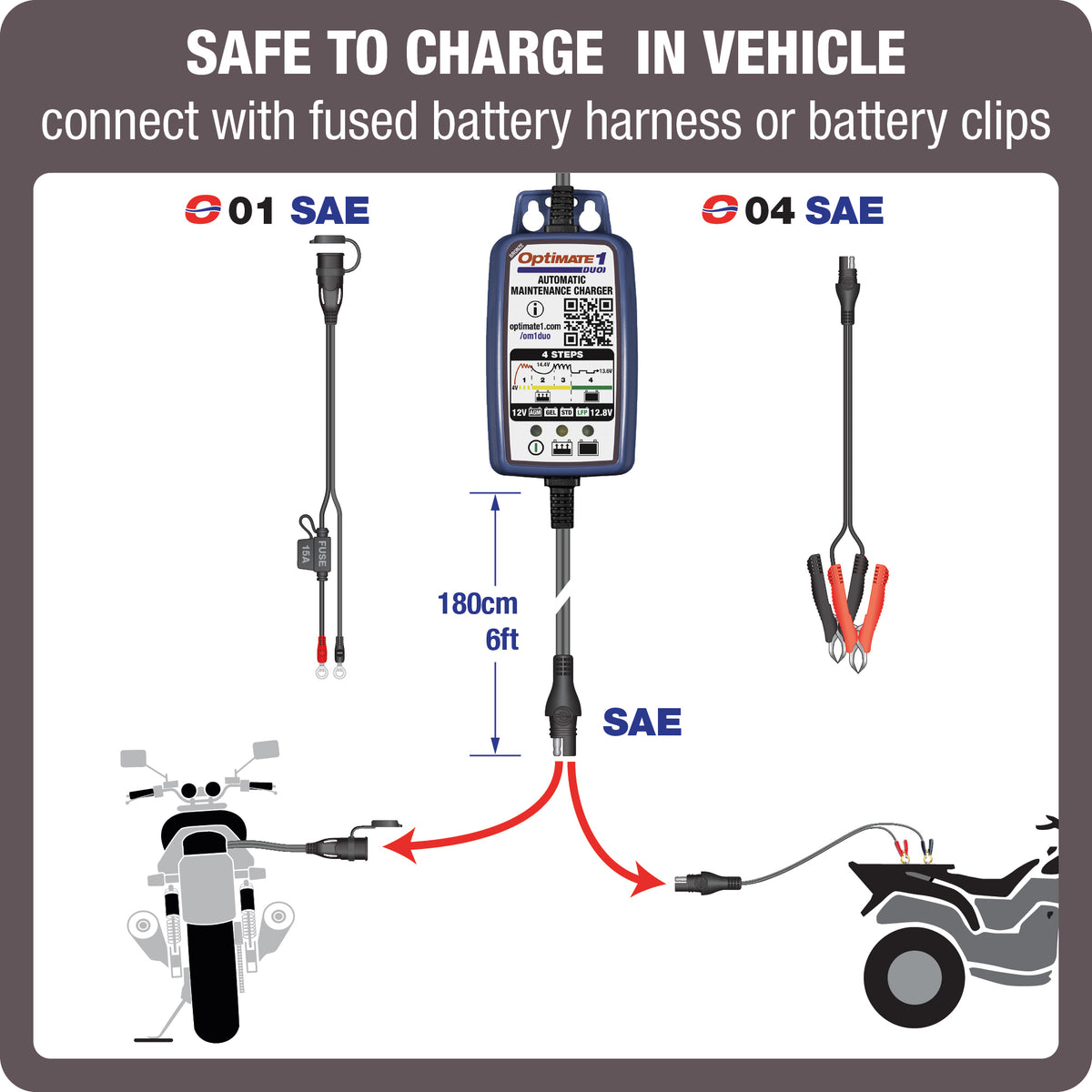

• Plug & Play – Includes battery clips for temporary charging and a fused weatherproof battery lead for convenient permanent battery connection.

• Connect & Forget – Fully automatic charging followed by efficient 24-7 battery maintenance.

What’s in the Box

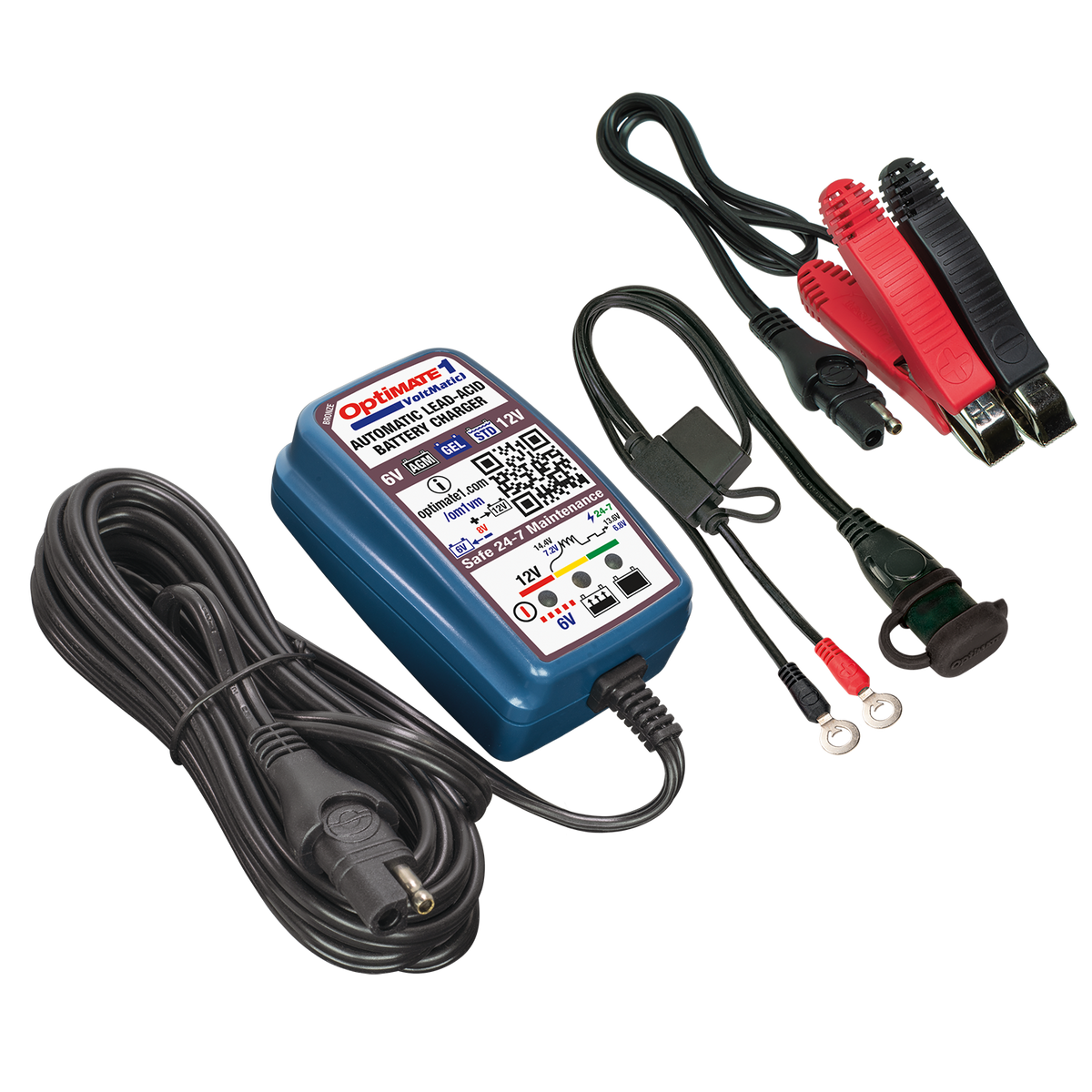

• OptiMate 1 VoltMatic 6V/12V 0.6A battery charger and maintainer (model TM-401)

• O-04 battery clip set

• O-01 fused weatherproof battery lead with M6/M8 ring terminals

• User instructions

• 3-year limited replacement warranty
