OptiMate PRO 1 DUO – Workshop-Grade 12V Charger for Lead-Acid & Lithium Batteries - TM-650US

OptiMate PRO1 DUO : PRO series - motorcycle: 12V 10A lead-acid & lithium diagnostic battery charger, tester & power-supply

The OptiMate PRO1 DUO (model: TM650) is the professional combination battery charger-tester & power supply for motorcycle, ATV, UTV & small craft / machine professionals, repair shops and battery retailers.

Three selectable modes include 1) 12V lead-acid (STD/FLA, AGM, GEL), 2) 12.8V/13.2V LFP (LiFePO4) to activate new batteries, or recover, charge and test neglected used batteries, or recharge the battery on a vehicle in for service / repair, and 3) Power-Supply for battery support during vehicle diagnostics, tuning or troubleshooting.

The built-in charging automation is a time saver for a service technician: Select the battery type (12V Pb or 12.8V / 13.2V LFP) and connect to the battery and once the green TEST LED blinks, the battery is ready!

The fully automatic battery modes include Ampmatic current control, that enables charging of any size of motorcycle / small vehicle battery without the need to pre-select current. Activating a new battery for sale or for use in a new vehicle undergoing PDI (pre-delivery inspection) is rapidly achieved, typically within one hour.

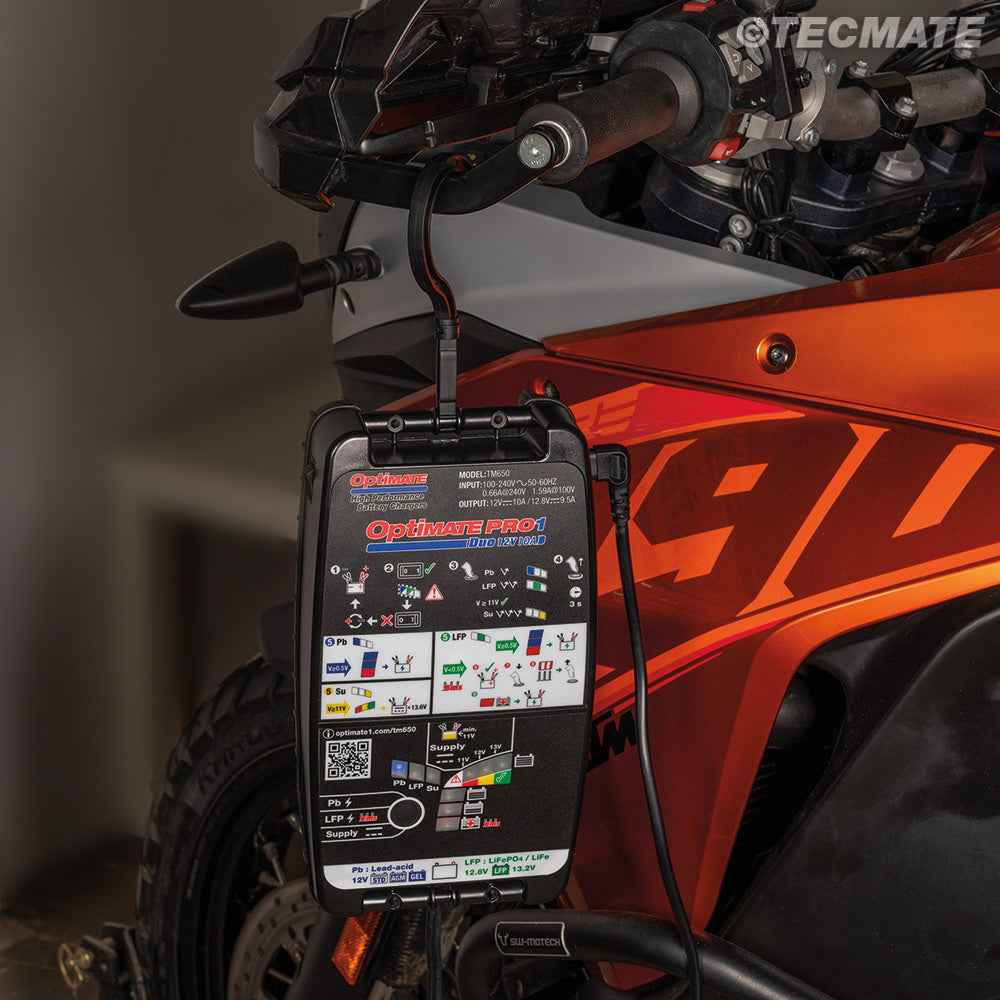

The Power-Supply mode makes electrical troubleshooting or updating of software on the vehicle easy. A fixed voltage of 13.6V is delivered, with current of up to 9 Amps available to support the battery against drain by vehicle systems. Power-Supply will deliver power to an on-vehicle battery measuring at least 11.4V.  A hanging hook is included for ease of use at the vehicle.

AmpMatic : smart current control technology automatically adjusts current between 1A and 10A to charge any size of 12V Pb/lead-acid or 12.8V / 13.2V LFP Lithium battery - smaller battery gets less current, bigger battery gets more!

Test after / during charging : during charging the battery’s recovery is tracked to confirm it is accepting charge as expected, vitally important for LFP lithium batteries, AND, after charging to see if the battery is holding charge, with up to 6 different results indicated on the LED test panel.

SAFE: Smart electronics protects against accidental reverse polarity connection. No sparks if clamps touch as the output remains off until it is connected to a battery with voltage.

SAVES FLAT BATTERIES: With Pb mode selected, it can save a dead-flat Pb / lead-acid battery from as low as 0.5V, with smart desulphation to get the battery to accept charge, followed by pulse recovery charge to bring it back to life. With LFP mode selected, it it can save a dead-flat LFP battery from as low as 0.5V and continuously tests the battery to check for shorted or damaged cells. A LFP battery with advanced BMS that protects against over discharge, can be recovered with the BMS reset mode.

SERVICE : select 13.6V power-supply mode for battery support.

GREEN TECHNOLOGY: Hi-tech industrial level power conversion with power factor correction & synchronous rectification makes this 120W battery charging platform one of the most efficient in the industry. If left connected to AC power, standby power is less than 0.5W. OptiMate PRO-1 DUO uses 50% less power than ‘other brand’ chargers and guaranteed to save you money in electricity cost!

More Features:

• Charge current – Maximum: 10 Amps at 12V, with Ampmatic automatic current control reducing it lower for smaller batteries.
• Universal 12V lead-acid motorcycle / small vehicle Battery Compatibility – Works with STD / flooded / wet-cell with removable filler caps (for adding distilled water) and sealed/maintenance free AGM (Absorbent Glass Mat).
• Universal Lithium LFP/LiFePO4 12.8V/13.2V** motorcycle Battery Compatibility – all motorcycle lithium batteries made with Lithium Ferrous Phosphate lithium technology.
• ** nominal voltage is 12.8V (4 x 3.2V), but some battery brands claim 13.2V (4 x 3.3V).
• Two selectable charge modes: Select Pb for 12V lead-acid batteries or LFP for 12.8V / 13.2V batteries.
• Global input (100–240 V, 50 -60Hz) – connect with region compatible AC power cable (with IEC320 C7/8 connector) that fits into the corresponding receptacle on the charger. Max AC Amps at 240Vac= 0.66A, 115Vac=1.38A.  100Vac=1.59A
• Energy efficient power conversion - power factor correction and synchronous rectification.
• Safe for Sensitive Electronics – No overcharging, spark-suppressed and short-circuit protected.

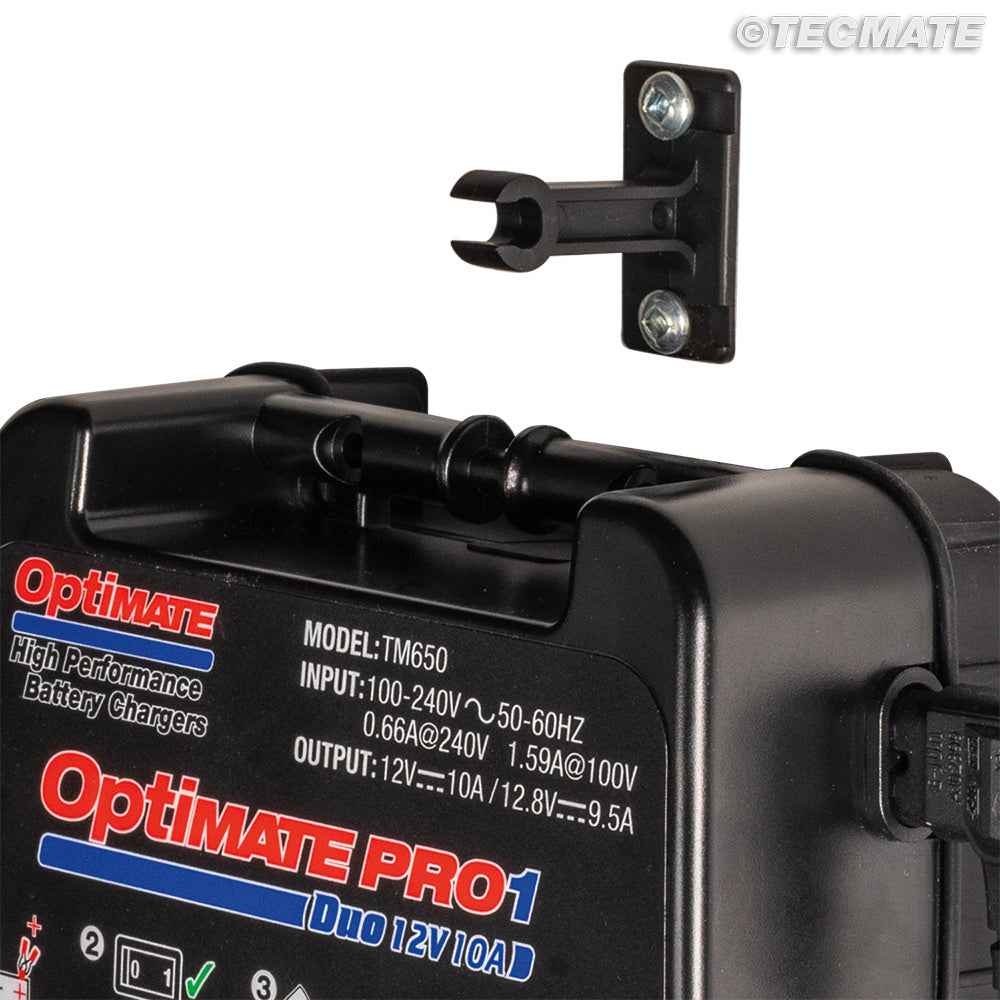

• Professional – For indoor use (IP20 rating), with hanging hook, wall storage receiver and integrated wall-mounts.
• Cable accessories – Includes a set of fused battery clamps and a charge cable extender.

·       (Technical specifications PDF)

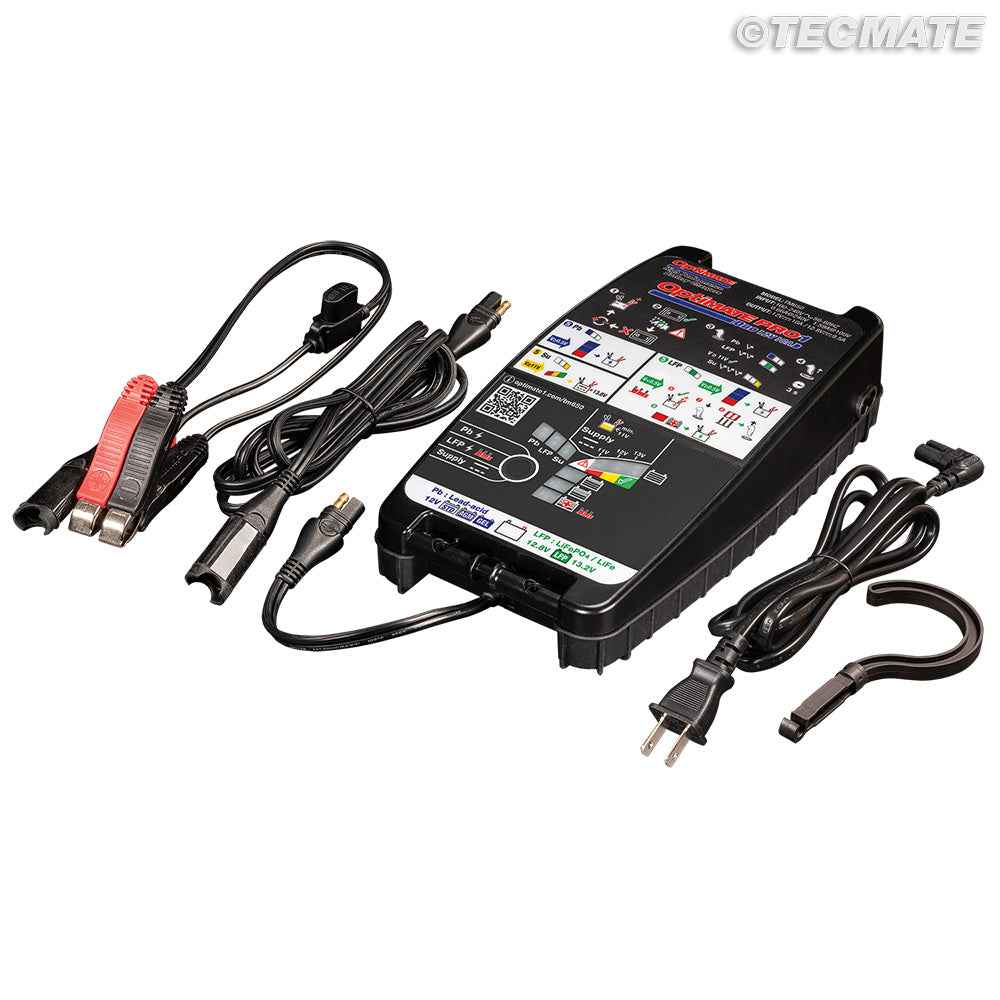

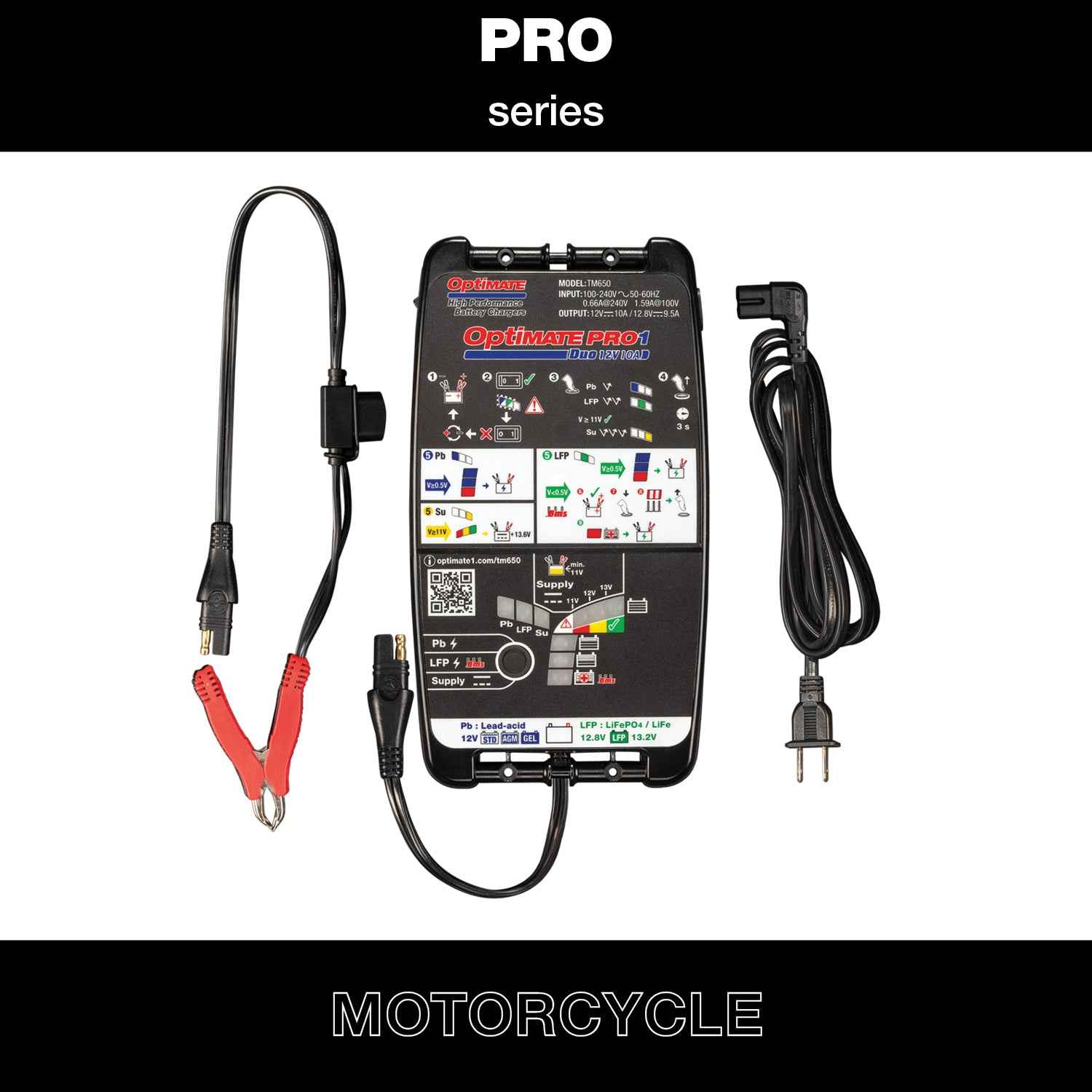

What’s in the Box

• OptiMate PRO 1 DUO (model TM650) 12V 10A Battery Charger
• O‑14 crocodile clip set with fuse
• O‑43 180cm / 6ft charge cable extender
• AC power cable (region compatible)
• Hanging hook
• Wall storage mount
• User manual
• 2‑year limited replacement warranty
