OptiMate G10 12V/16V, the Most Advanced 'Racing' Battery Charger for 12V & 16V AGM Lead-Acid and 12.8V/13.2V & 16V LFP Lithium-ion Batteries.

OptiMate G10 12V/16V: PRO RACING series 12V 10A / 16V 8A lead-acid & lithium Fast charger & diagnostic battery saver, charger, tester & maintainer

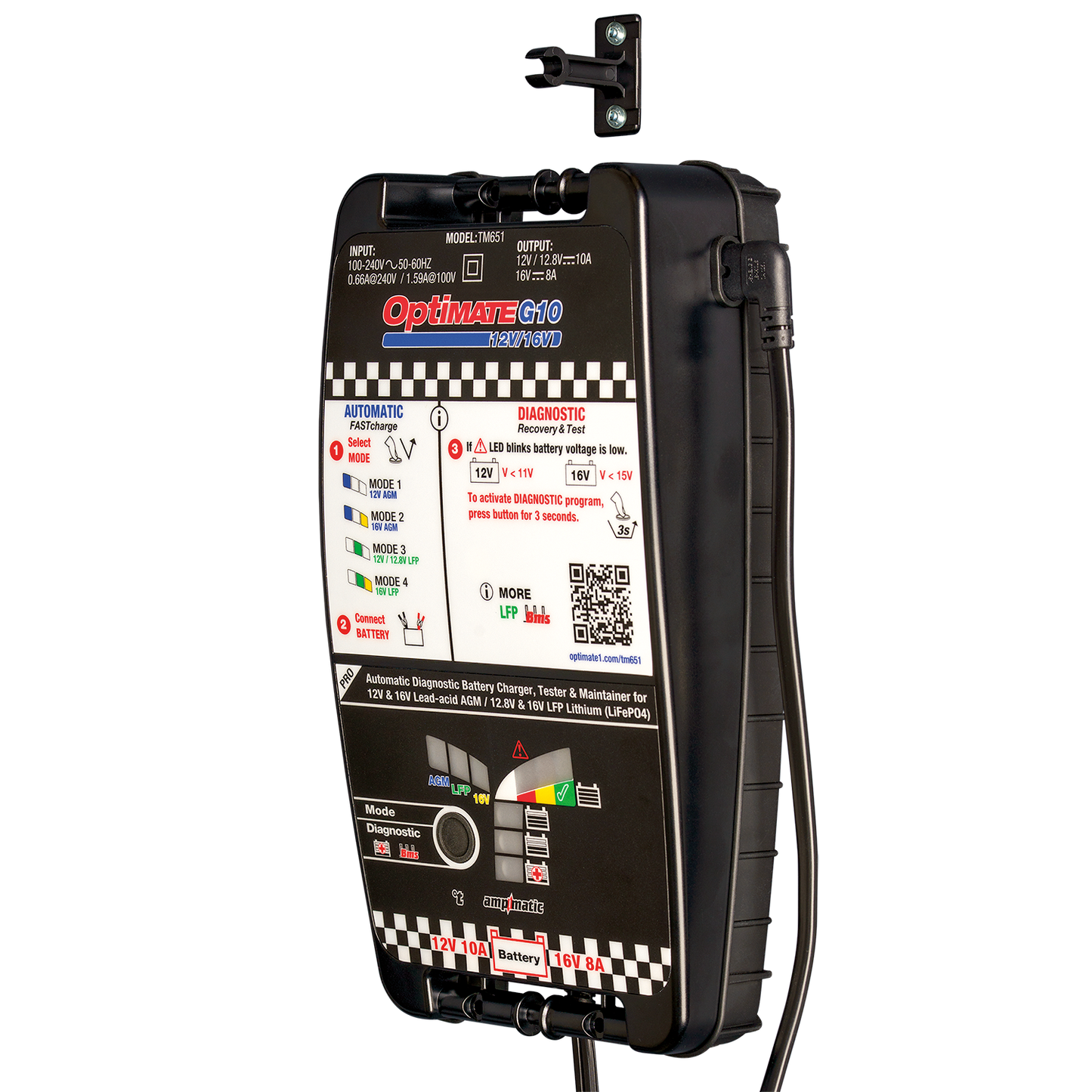

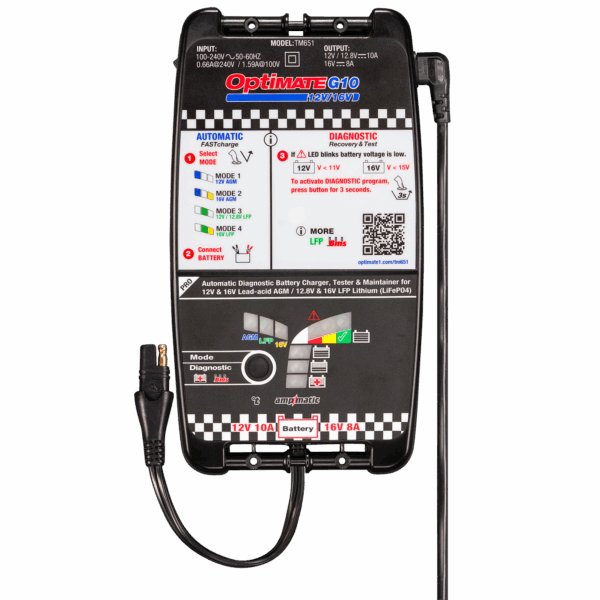

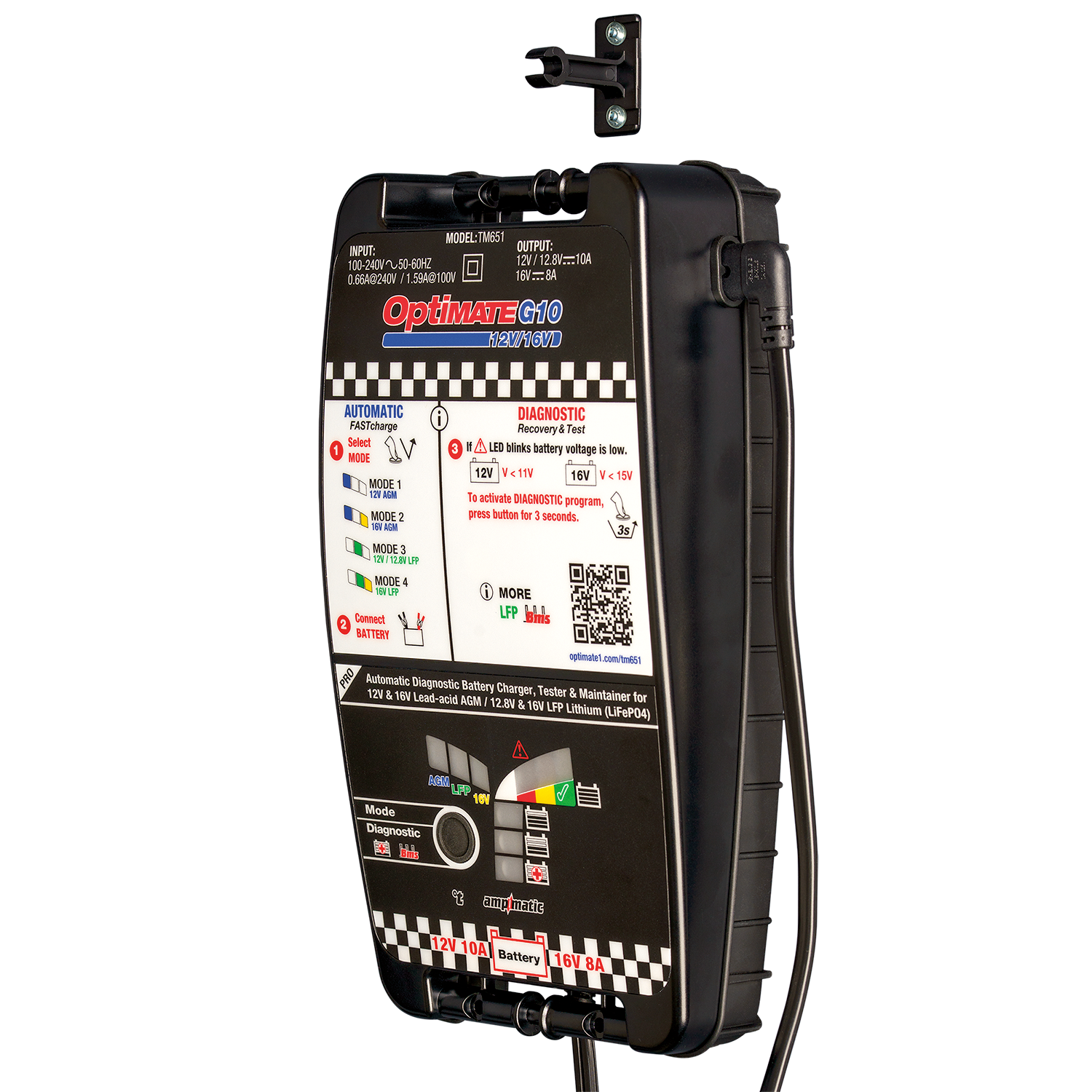

The OptiMate G10 12V/16V (model: TM651) automatic battery charger is a versatile and powerful all-rounder for the 12V & 16V AGM (sealed lead-acid) and 12.8V / 13.2V (4s) & 16V (5s) Lithium LFP (LiFePO4) batteries used in all racing, including drag & circle track.

The FASTcharge program is the perfect racing program that automatically recharges the battery at maximum power and will support your battery during pre-race preparation.

If the battery is deep discharged the Diagnostic program can be activated to recover the battery with the proprietary OptiMate battery save and recovery modes for AGM and LFP batteries. Once recovered charging continues with Ampmatic control, automatically adjusting current lower for the smaller batteries or a battery still recovering.

One of 4 battery modes can be selected prior to charging and remains in memory i.e. reconnect your battery and the previously selected charge mode ensures it is charged right.

It’s protected against selection errors - Connect a battery with a different voltage in error and the OptiMate G10 will not proceed until you correct the selection.

And you can charge in any weather, as not only are the cables and the charger rated for use down to minus 40 degrees, but the integrated thermal sensor also actively adjusts charge voltage / current according to ambient temperature.

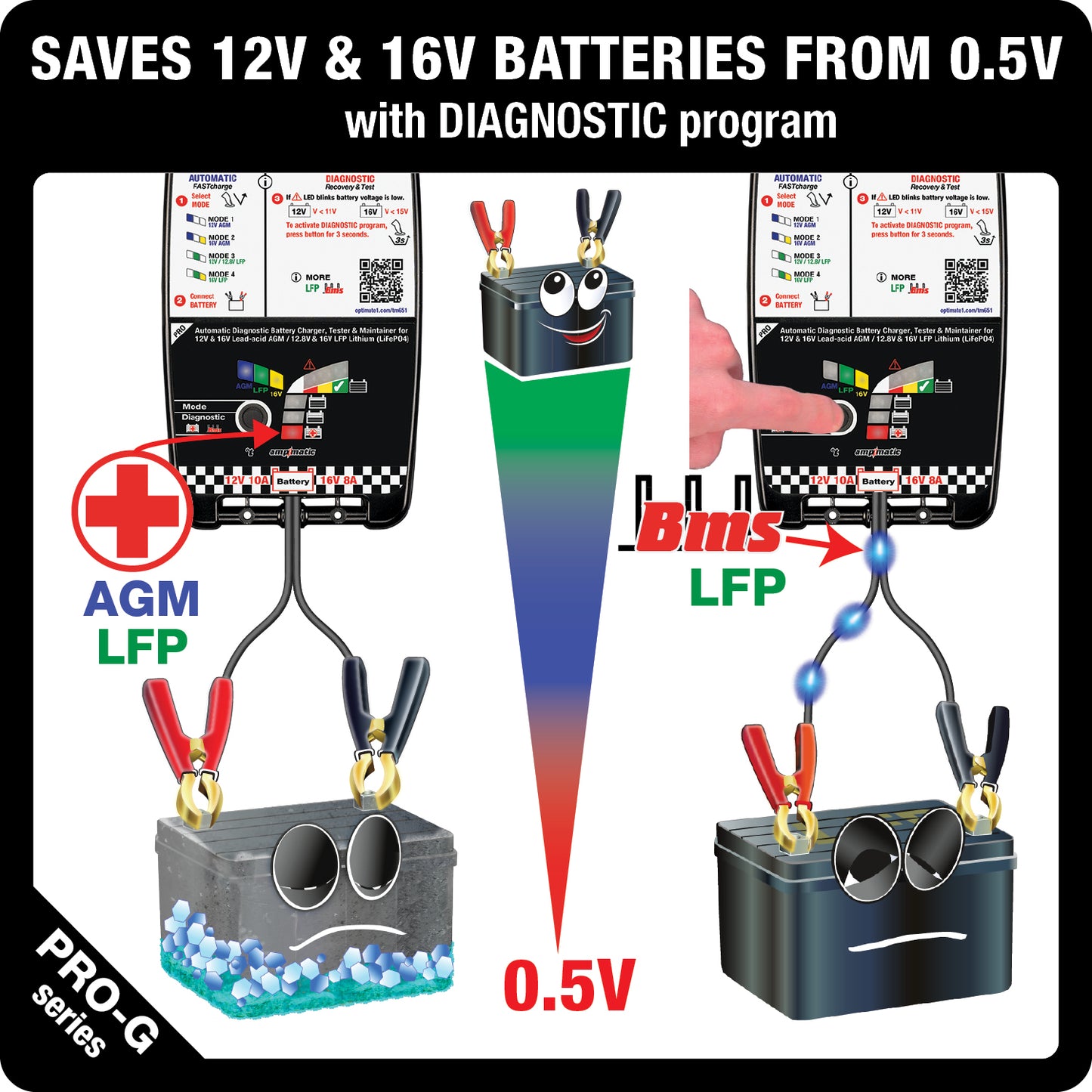

Best of all, it automatically saves a dead flat battery from as low as ½ a volt, bringing back to life batteries other chargers can’t with special recovery methods for each battery mode.

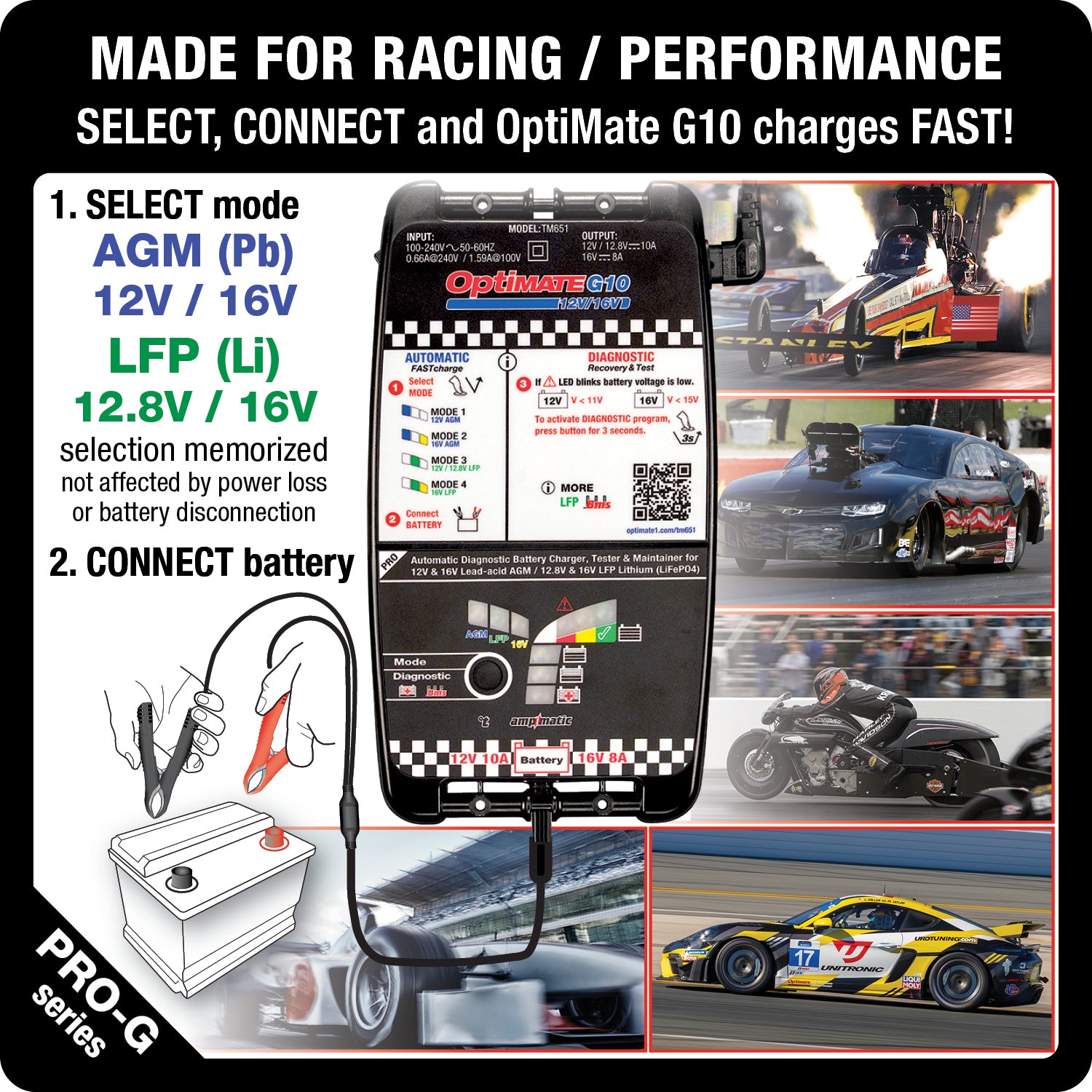

Smart Selection: 4 battery mode selections 1) 12V AGM 2) 16V AGM 3) 12.8V/13.2V (4 cell) LFP  4) 16V (5 cell) LFP. Your selection remains in memory, unaffected by loss of AC power or battery disconnection. Connect to the same battery and it charges automatically, or if AC power is disrupted whilst charging, once power returns it automatically continues charging according to the memorized selection.

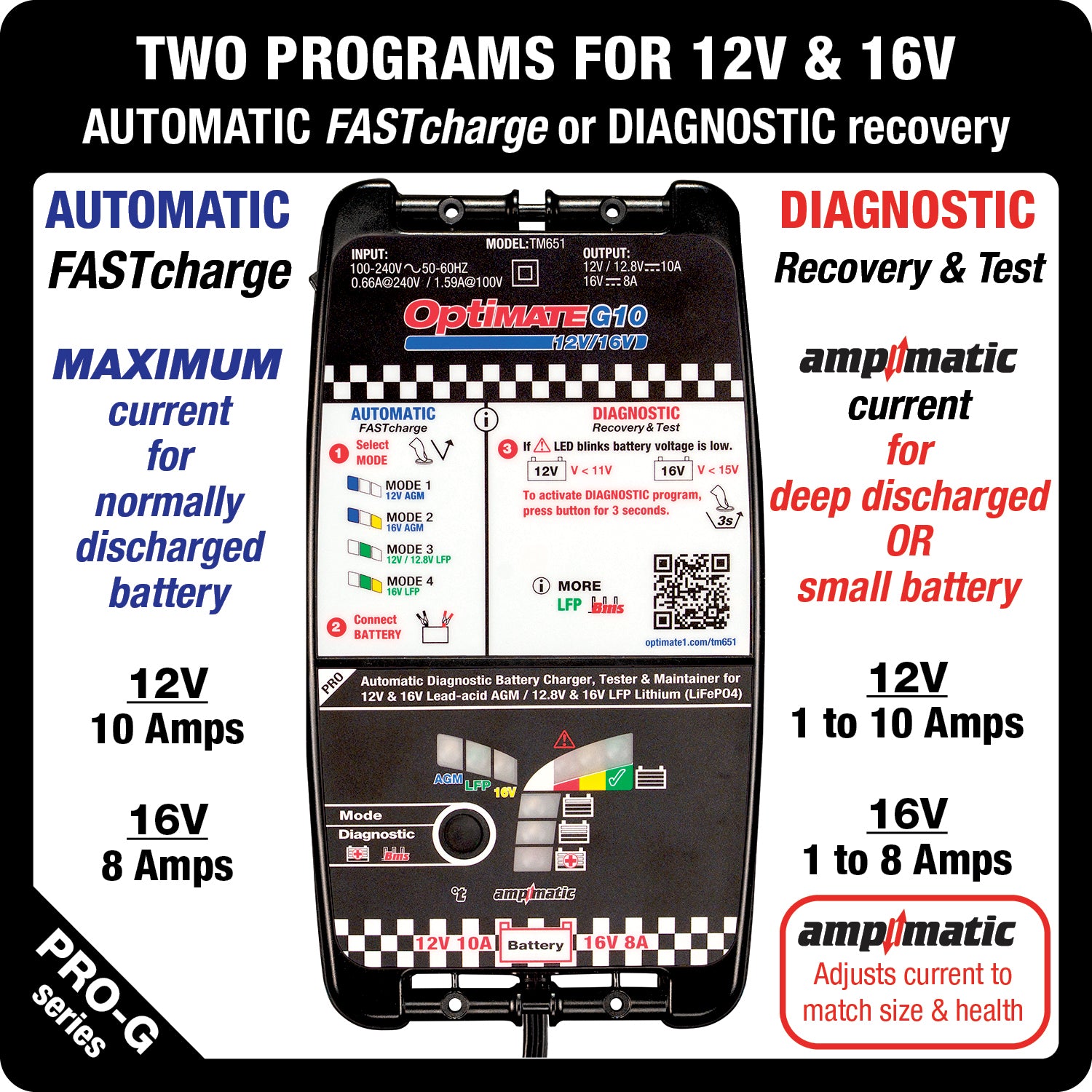

FASTcharge program : Automatically activates when battery is connected andf voltage indicates battery is not deep discharged (below 11V for a 12V battery or 15V for a 16V battery).  Maximum current (10A at 12V or 8A at 16V) is delivered.

Diagnostic program : Can be pre-selected before connection to the battery if it is smaller (e.g. motorcycle) or, if the battery is deep discharged below 11V for a 12V battery or 15V for a 16V battery. Once selected the battery can be automatically saved from as low as 0.5 Volts, or the smart BMS protecting a lithium LFP battery can be reset to turn the battery on again.

AmpMatic : Delivered only during Diagnostic mode this smart current control technology automatically adjusts current between 10A (8A at 16V) and 1A - smaller battery gets less current, bigger battery gets more!

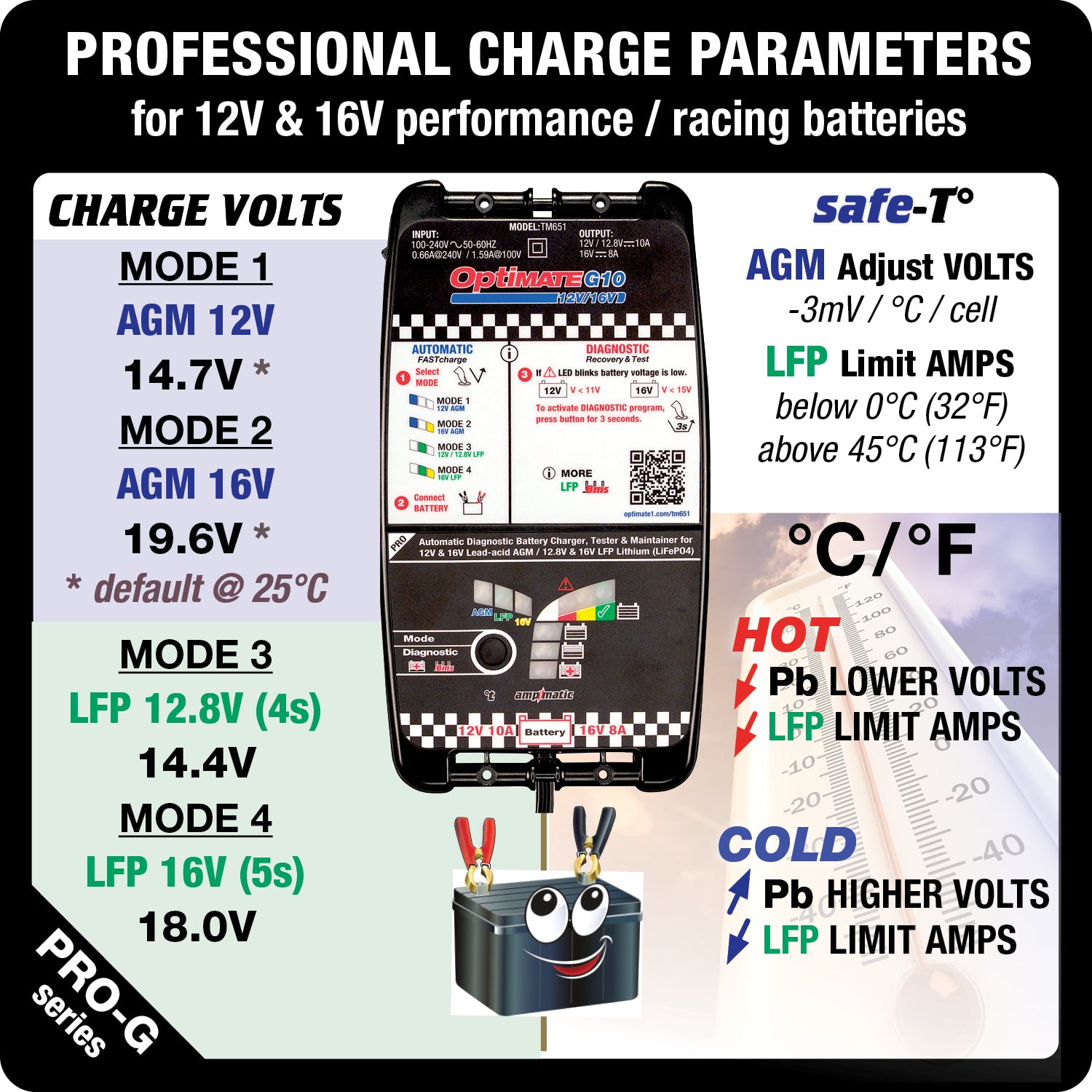

T°-SAFE: Automatic temperature regulation : AGM: Charge voltage set at default temperature of 25°C, with adjustment of -18mV / °C. LFP: Charge current is reduced below 0°C (32°F) or above 45°C (113°F) to protect the battery from damage.

GREEN TECHNOLOGY: Hi-tech industrial level power conversion with power factor correction & synchronous rectification makes this 120W battery charging platform one of the most efficient in the industry. If left connected to AC power, standby power is less than 0.5W. OptiMate G10 uses 50% less power than ‘other brand’ chargers and guaranteed to save you money in electricity cost!

More Features:

• Charge current – Maximum: 10A at 12V or 8A at 16V in FASTcharge program, with Ampmatic automatic current control when Diagnostic program is selected.
• Universal 12V lead-acid Battery Compatibility – Works with AGM (Absorbent Glass Mat) and lead-acid batteries rated to accept a maximum charge voltage of 2.45V/cell (14.7V for a 12V and 19.6V for a 16V battery).
• Universal Lithium LFP/LiFePO4 Battery Compatibility – all lithium batteries made with Lithium Ferrous Phosphate lithium technology that accept a maximum charge voltage of 3.6V/cell (14.4V for a 12.8V / 13.2V and 18V for a 16V battery).
• Four selectable charge modes: 12V AGM, 16V AGM, 12.8V/13.2V (4-cell-in-series) LFP, 16V (5-cell-in-series) LFP.
• Global input (100–240 V, 50 -60Hz) – connect with Type-A American 2-pin plug. Max AC Amps: 0.66A at 240V, 1.38A at 115V, 1.59A at 100V.
• Energy efficient power conversion - power factor correction and synchronous rectification.
• Safe for Sensitive Electronics – No overcharging, spark-suppressed and short-circuit protected.
• Usage – For indoor use, between –20°C/-4°F and 55°C/113°F.

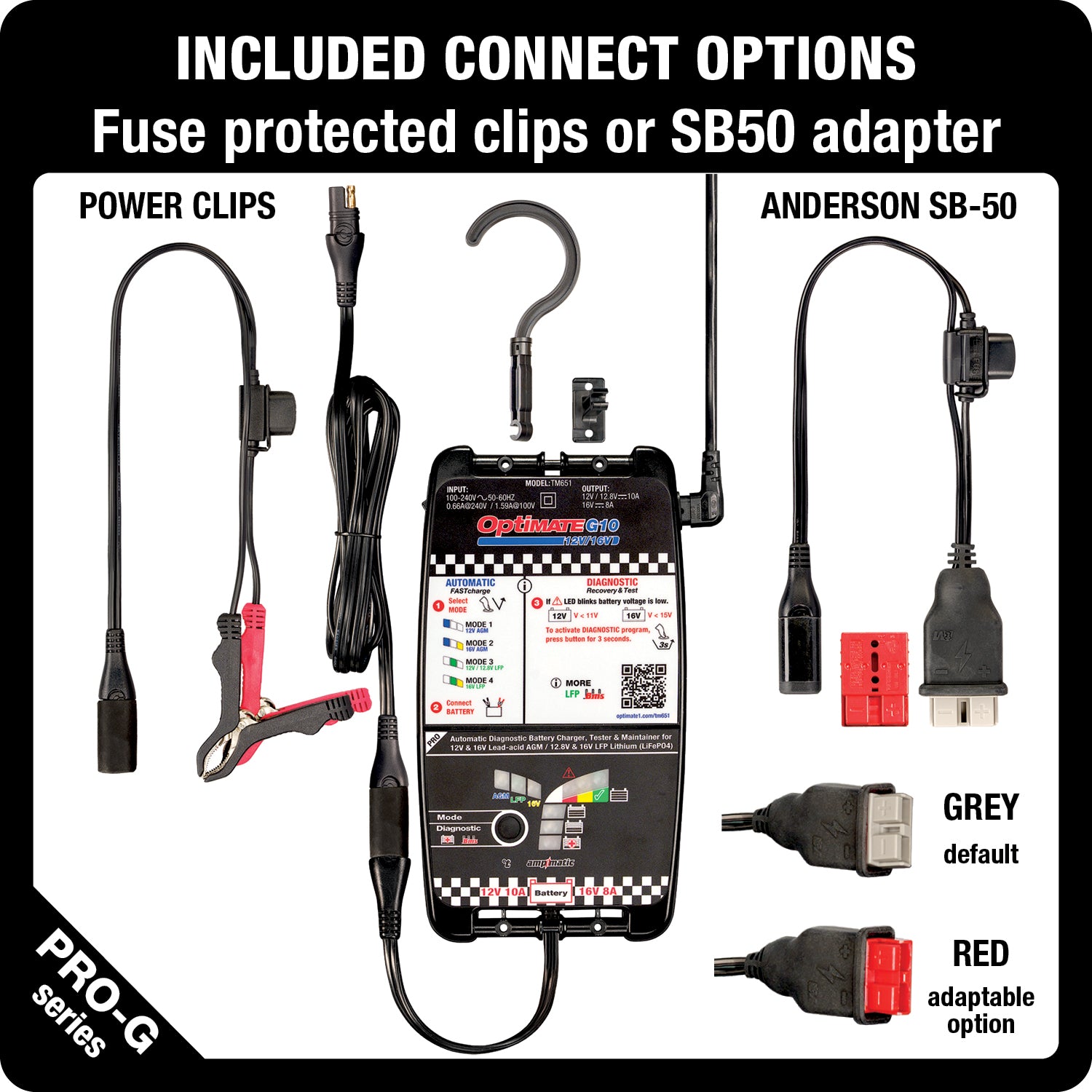

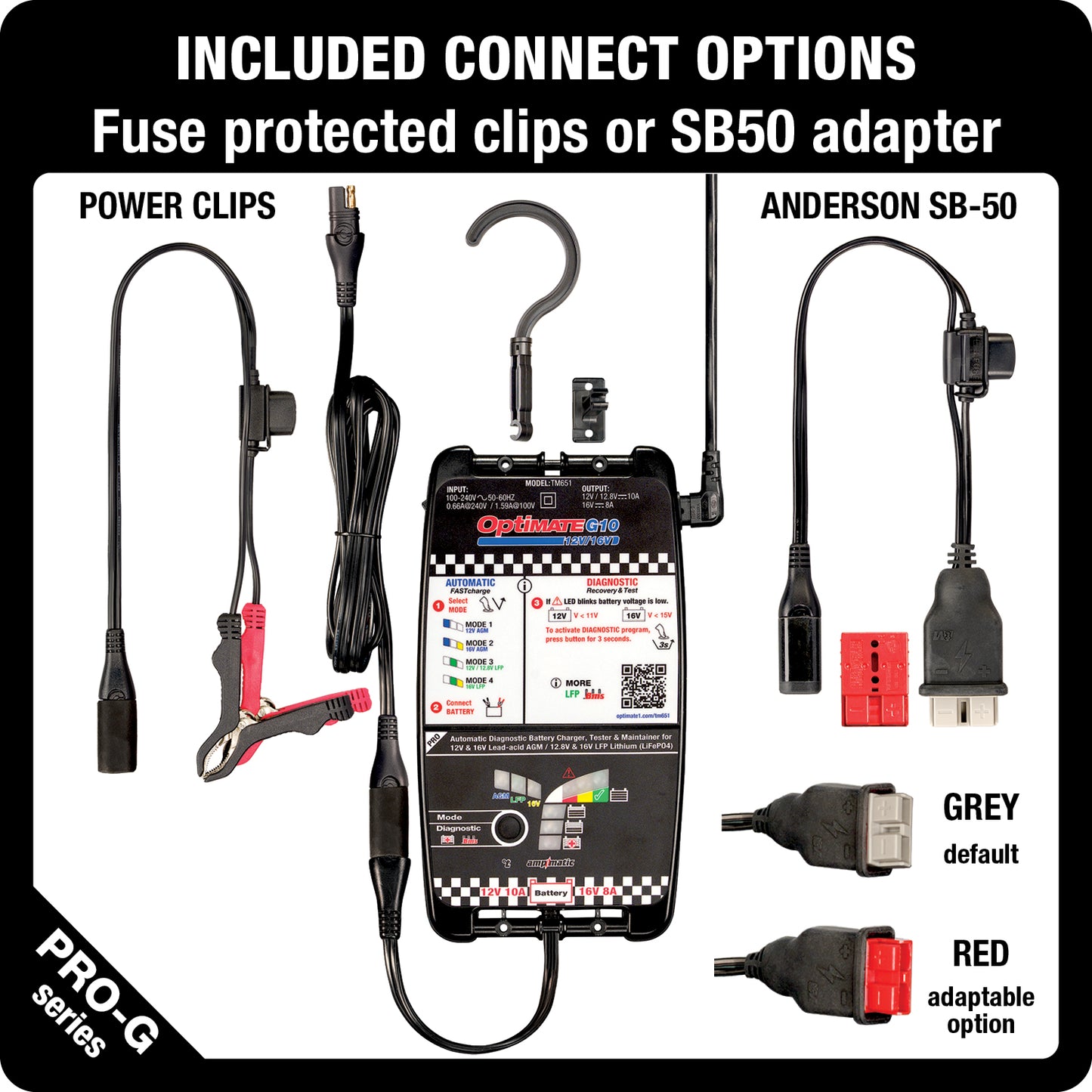

• Plug & Play – Includes a set of fused, fully isolated battery clamps for quick and safe connection to the battery and a SAE to SB-50 adapter with fuse protection.
• Connect & Forget - Fully automatic time limited charging followed by 24-7 smart 'float charge' maintenance.

·       (Technical specifications PDF)

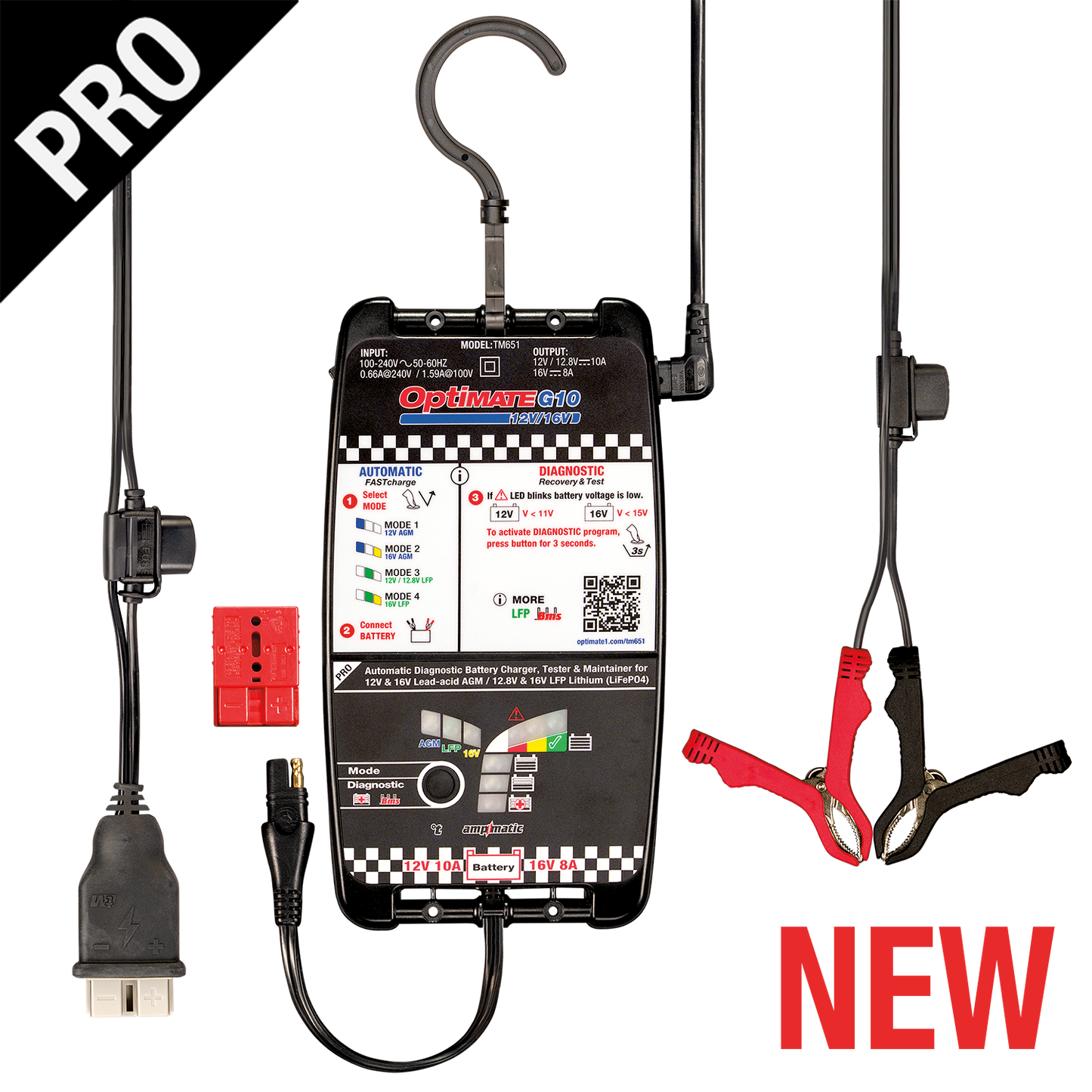

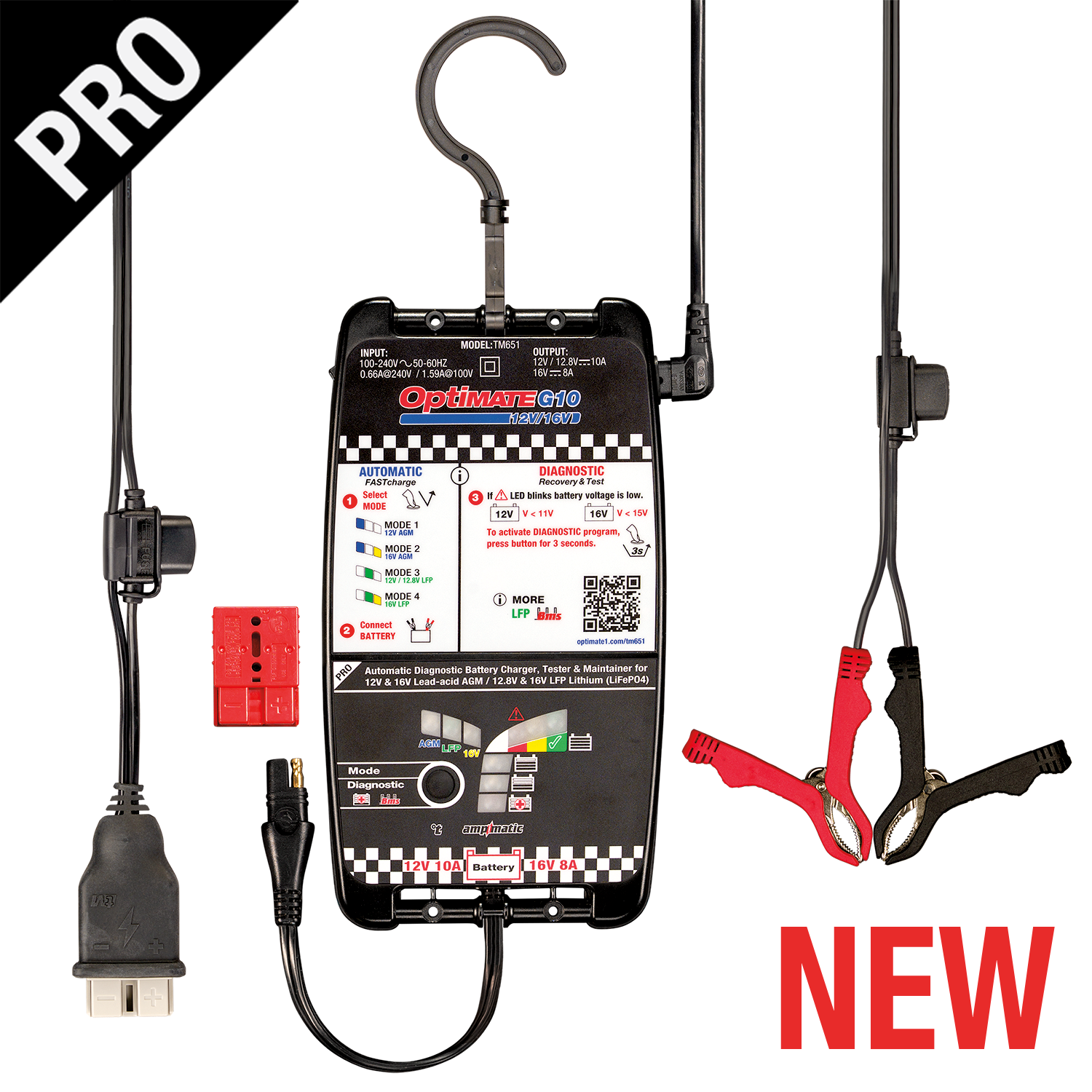

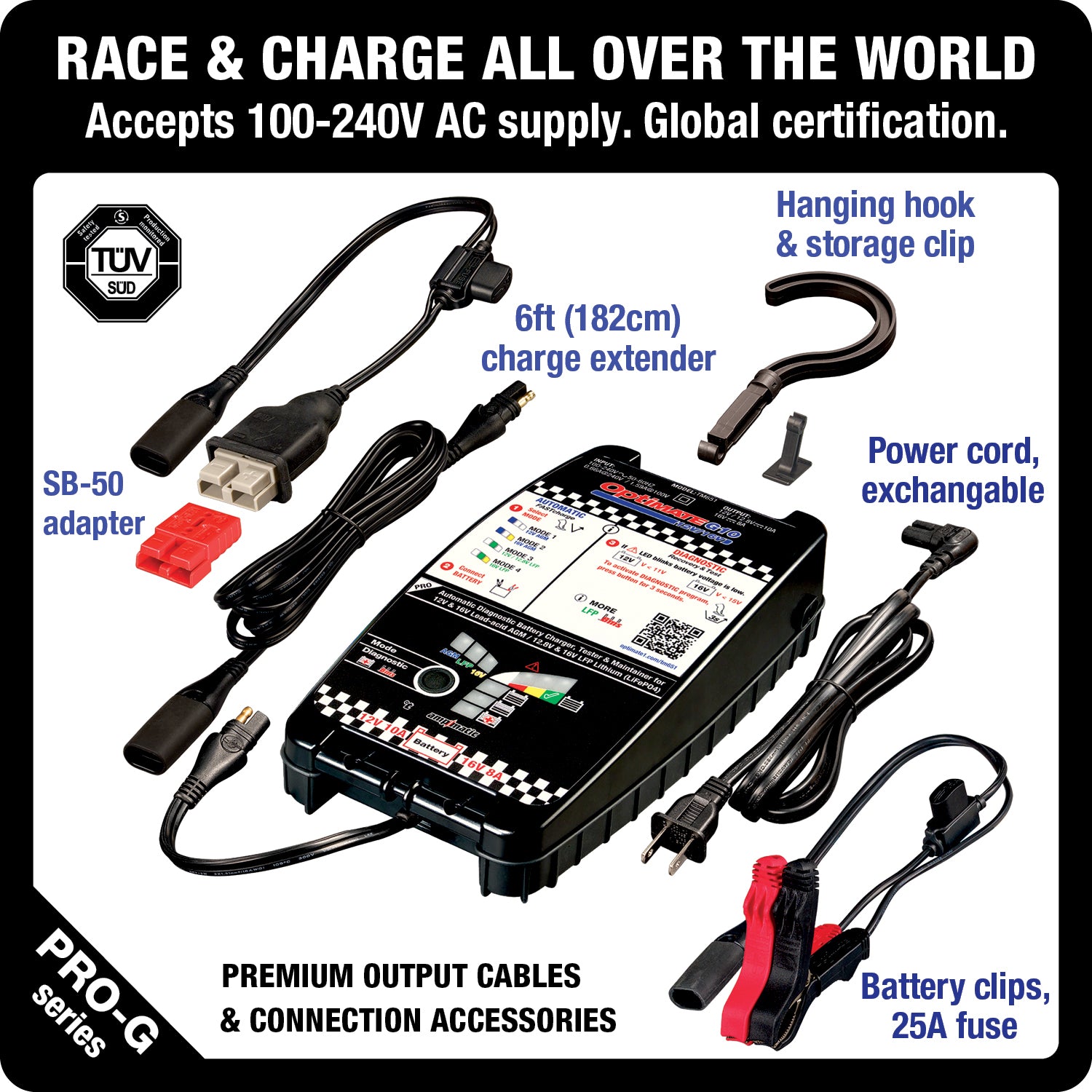

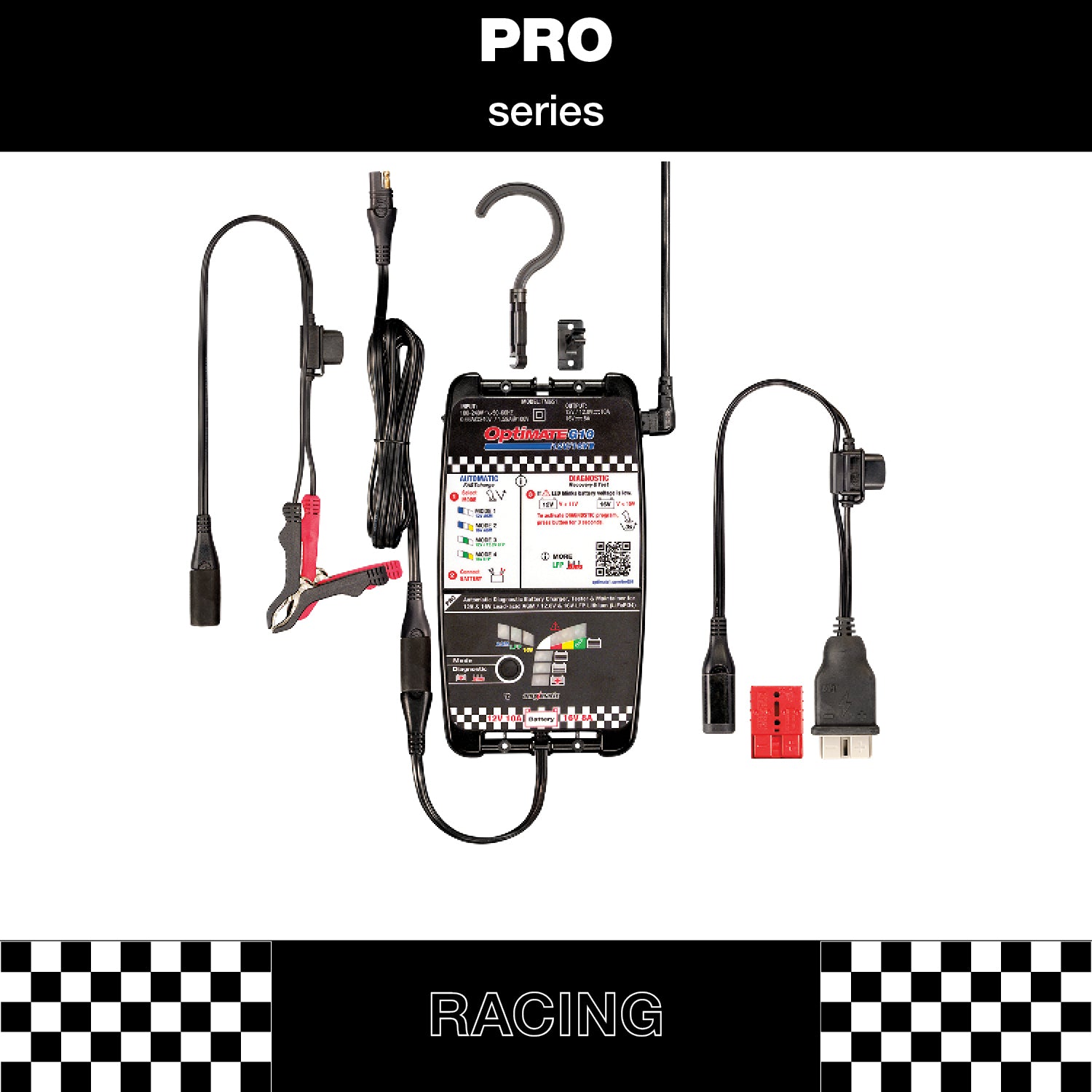

What’s in the Box

• OptiMate G10 12V/16V (model TM651) 12V 10A / 16V 8A Sealed Battery Charger
• O‑34 fused crocodile clip set
• O-43 extender cable
• O-75 SB-50 (grey) to SAE fused adapter. Includes SB-50 red connector body that can be exchanged with grey.
• Instruction guide / manual
• 2‑year limited replacement warranty
